Adjustable Infrared PIR Surface Mounted Sensors IP65

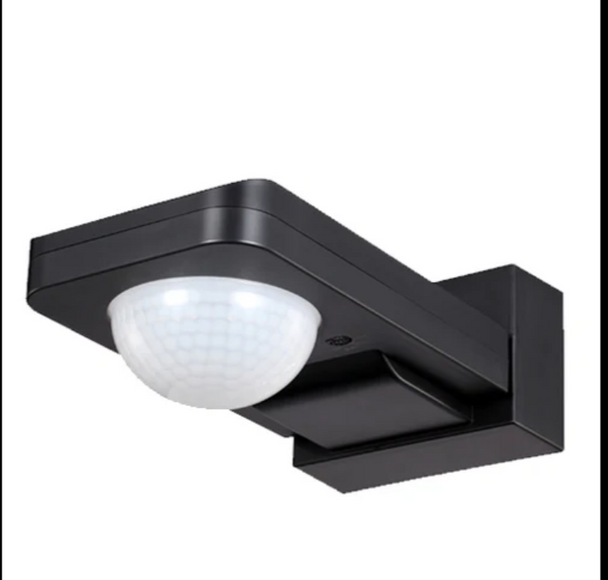

Adjustable Infrared PIR Surface Mounted Sensor – SENS009 / SENS010

Upgrade your lighting control with the SENS009/SENS010 Adjustable Infrared PIR Sensor, designed for reliable and energy-efficient motion detection in residential and commercial spaces. Available in both white and black finishes, this surface-mounted sensor offers 360° detection coverage, ensuring maximum area monitoring.

With a detection range of up to 20 metres and an adjustable time delay from 10 seconds to 30 minutes, this sensor provides flexible control tailored to your needs. Its built-in day/night recognition allows operation based on ambient light levels (3–2000 lux), helping reduce unnecessary energy consumption.

Engineered for durability, the sensor features a UV-resistant polycarbonate (PC) housing, making it suitable for various indoor and semi-outdoor applications. The manual override function and 3-wire design offer added convenience and easy integration into existing systems.

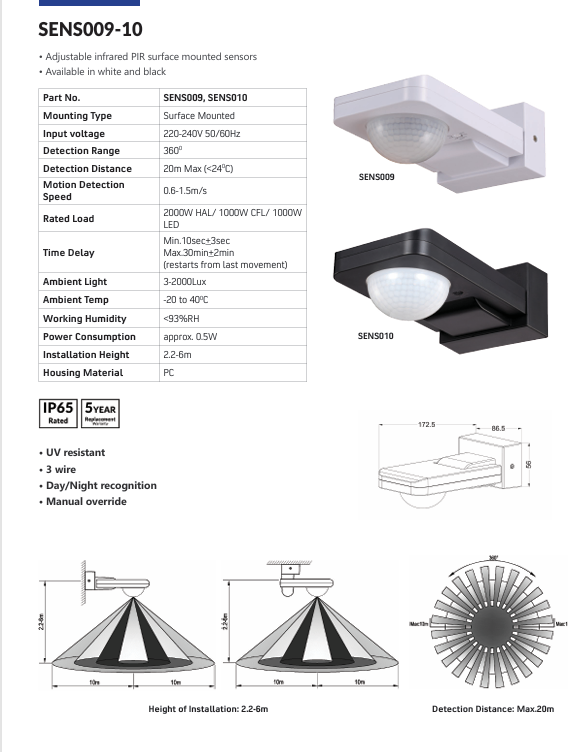

Key Features:

• 360° motion detection with up to 20m range
• Adjustable time delay (10 seconds to 30 minutes)
• Day/Night sensor (3–2000 lux) for smart operation
• Supports up to 2000W (Halogen), 1000W (CFL/LED)
• Suitable for installation heights between 2.2m and 6m
• Low power consumption (~0.5W)
• UV-resistant durable PC housing
• Manual override function
• Available in White (SENS009) and Black (SENS010)

Ideal for hallways, entrances, car parks, and outdoor covered areas, this PIR sensor ensures efficient lighting control with enhanced convenience and security.
